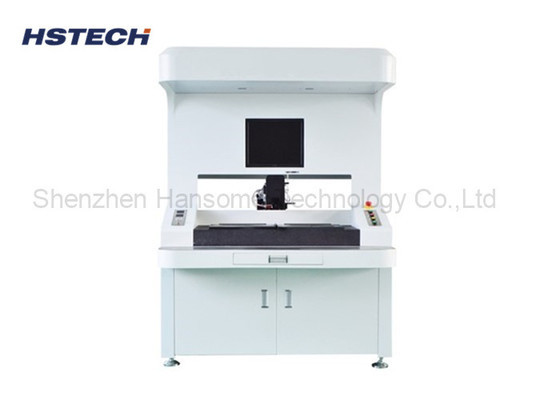

HS-VS400 3 Axis CCD Positioning Dual Table Visual Glue Dispensing Machine
High precision 3 Axis CCD positioning visual glue dispensing machine with dual table system, ±0.02mm accuracy, automatic dispensing for SMT PCB assembly line. Improve production efficiency and reduce labor cost.
Product Overview
The HS-VS400 3 Axis CCD Positioning Dual Table Visual Glue Dispensing Machine is a high-precision automatic dispensing system designed for modern SMT, PCB assembly, and electronics manufacturing lines. Equipped with an advanced CCD vision positioning system (2.5 μm resolution) and intelligent motion control, this machine ensures highly accurate glue dispensing with stable repeatability and fast production speed. With dual-table design, it allows continuous operation—one table is dispensing while the other is loading/unloading—significantly improving production efficiency.
Key Features
- High-Precision CCD Vision Positioning System - 2.5 μm CCD resolution for accurate alignment with intelligent visual recognition system that reduces human error
- Dual Table Continuous Production - One table working while the other loads/unloads, greatly improving SMT line efficiency for mass production environments
- Ultra High Accuracy Dispensing - Repeat accuracy: ±0.02mm with recognition accuracy: ±0.0125 mil for consistent product quality
- High-Speed Production Capability - Maximum speed: 1000mm/min supporting high-volume manufacturing
- Intelligent Control System - Windows-based dispensing software with manual teaching programming mode for easy operation and quick setup
- Industrial Grade Build Quality - Stainless steel machine body with stable structure designed for 24/7 industrial production
Technical Specifications
| Specification |
Details |
| Product Name |
Visual Glue Dispensing Machine |
| Model |
HS-VS400 |
| Transmission Height |
920±20mm |
| Table Size |
300×400mm |
| Table Quantity |
Single or dual table (customer configurable) |
| Fixture |
Customized |
| CCD Resolution |
2.5 μm |
| Maximum Speed |
1000mm/min |
| Glue Viscosity Range |
≤5000 LPS |
| Repeat Accuracy |
±0.02mm |
| Recognition Accuracy |
±0.0125mil |
| Power Supply |
AC220/110V, 500W |
| Air Pressure |
0.5~0.7Mpa |
| Glue Tank |
10L, manual stirring |
| Light Source |
LED light source |
| Linear Guide Adjustment |
Intelligent adjust |
| Programming Mode |
Manual teaching |
| Software |
Windows + dispensing software |
| Spraying Method |
Automatic |
| Total Power |
2.6kW |
| Machine Body |
Stainless steel |
| Machine Weight |
600kg |
| Machine Dimension |
1060×1200×1700mm |
Application Industries
- SMT PCB assembly line
- Consumer electronics manufacturing
- LED lighting production
- Automotive electronics
- Semiconductor packaging
- Smart device manufacturing
Why Choose HS-VS400 Visual Dispensing Machine?
In modern electronics manufacturing, precision and consistency are critical. Compared with manual dispensing or traditional machines, the HS-VS400 provides:
- Higher production efficiency
- Lower labor dependency
- Reduced glue waste
- More stable product quality
- Faster ROI for production lines
Points We Solve
Many SMT manufacturers face:
- Inconsistent manual glue dispensing
- Low production speed
- High labor cost
- Poor dispensing accuracy
- Material waste and rework issues
The HS-VS400 solves all these problems with automation + vision positioning technology.
